How to make a real stearing wheel + pedals + H shifter


so guys hy i am saud and taday i am going to teach you guys how to make a stearing wheel + H shifter and pedal guy in this blog i will give you the entire information about this project i searched a lot about this project but i don't get any proper information about this project but don't worry in this blog i will teach how to build a stearing wheel H shifter and padels at home within reasonable price so if you guys want to buy it , it will cost arount 69000 rs in pakistan and guy the project which i am going to teach is very costly and reasonable but you will have to design it by yourself as you want ,
so guys lets get started
first guys you should have a knowledge of some electronic component if you don't have and knowledge than you simply follow me do as i do ;
first of all, all of you guys have to do is that you will need to buy some components of this project here are all the components which you will have to buy;
here are all steps are disscused deeply with pictures;
1) power supply 450 watt (you can also use computer's power supply)
2)2 dc motors with minimum 12000 rpm 12 volt

3)2 push buttons

4)Leonardo R3 Arduino

5)bread board

6)jumper wires

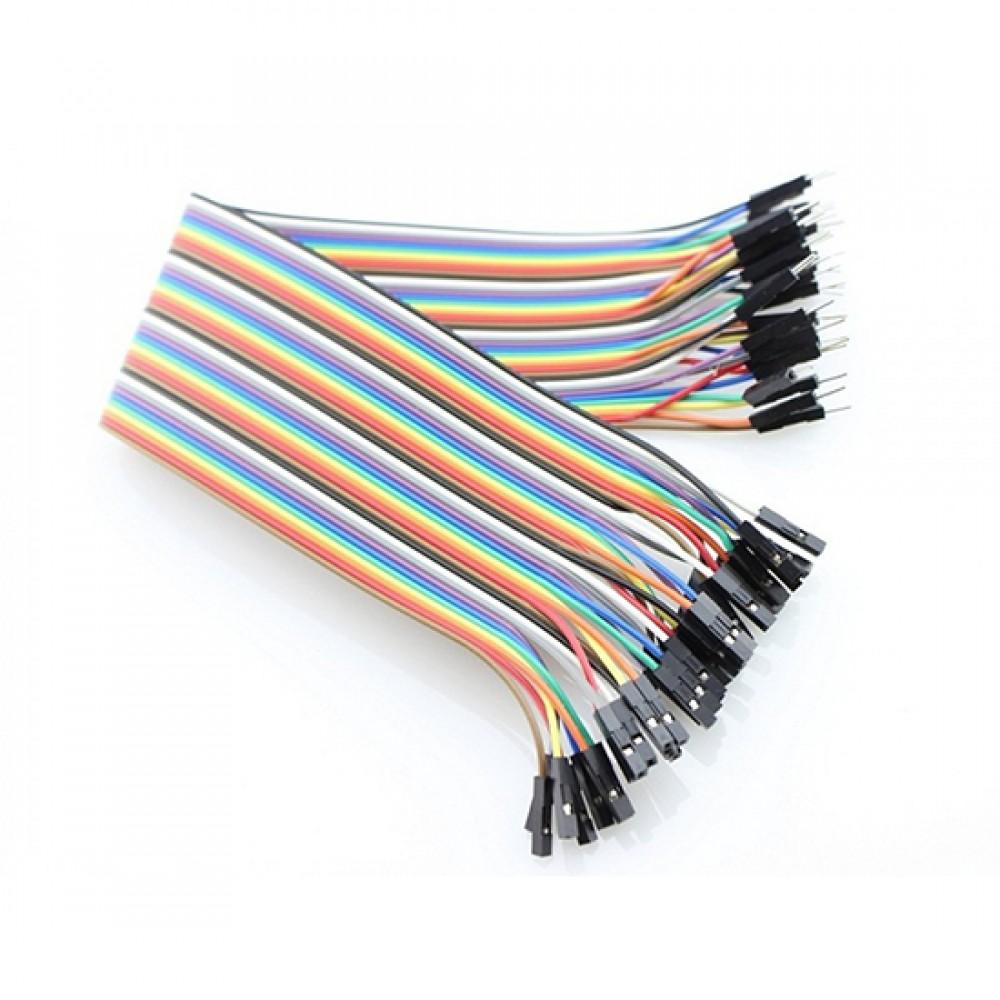

7)jumper wire male to female connectors

8)cables
9)3 10k ohm potentiometer

10)gt2 timing belt with pulley (2)(2)

11) 40 teeth pulley (2)

12)8mm shaft
13)motor driver module bts7960

14)Limit switch

15)Toggle switch

16)Bread board

17)encoder with timig disk printer

You can download software by typing on google and download them from internet
DOWNLOAD AI WAVE 2016 wheel config http://www.aiwave.fr/wc_updates/1033/... FIRMWARE http://www.aiwave.fr/downloads/FFBWhe... (Don't click, Just right click and save as) XLOADER https://drive.google.com/drive/my-drive








































it depends upon you that which you choose for you stearing wheel
you can choose any one from the above




i hope that this blog will help you have made this successfully
if you find this blog helpfull so kindly visit my youtube channel  and subscribe my channel to improve my work and as well as my motivation i hope that you will like
Thanks
Edited and Created by Malik saud;
